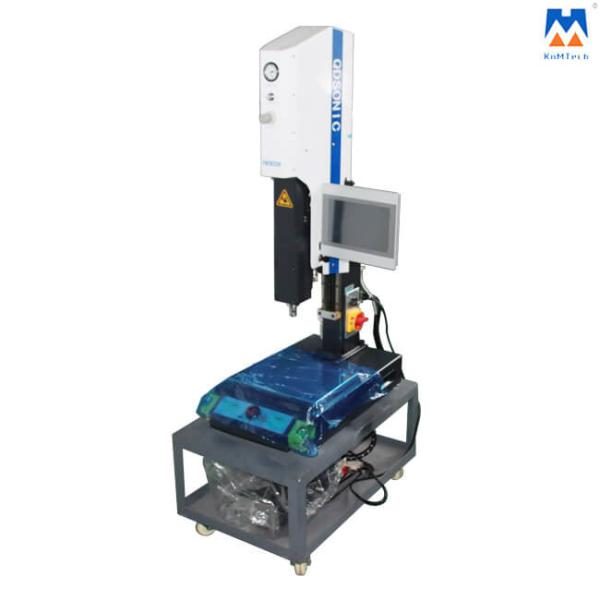

35KHz 1200W FU2025 Digital Ultrasound Welder, Ultrasonic Welding Machine For Plastic Welding
The K&M TECH has various operating modes and monitoring functions, which make it a reliable all-rounder amongst pneumatic welding machines.
This is the model KM-FU2025 ultrasonic welding press, it has integrated time, energy, distance control modes, and more other functions for different needs in industries.
Equipped with welding table balance system, micrometer-scale positioning system, linear sliding rail lifting system, grating ruler measurement positioning system; With more powerful welding management and data management system, the whole process control before, middle and after welding can be realized.
Technical parameters:
| Product Name | High Precision Pneumatic Ultrasonic Welding Machine |
| Frequency | 35Khz |
| Power | 1200W |
| Language | Chinese/English |
| Work Stroke | 100mm |
| Voltage | 200-240VAC stable output |
| Welding amplitude | 10~100% adjustable (1% accuracy) |
| Standardized configuration for this model | Pressure-trigger mode |
| Standardized configuration for this model | Depth Check (0.01mm precision) Reinforced Steel Profile for Press Structure |
| Linear guide blocks are used for welding movement and horn adjustment |
| Ports | Enough connection terminal ports for easy automation control |
| Interface | 10-inch Human-machine interface |
| Mode | Welding mode: | Time, Energy, Contact shut-off, Absolute Depth, Relative Depth, pressure trigger |
| Trigger mode: | Delay, Pressure, Depth |
| Air-pressure mode |
| No-fault power |
| 4-core 32-bit processor |
| 485 communications |
Different models of this series are available:
| Frequency | Power | Work Stroke | Voltage | Air Source |
| 15kHz | 3200w | 100MM | 220V+-10% | 0.2-0.7Mpa |
| 20kHz | 3000w | 100MM | 220V+-10% |
| 35kHz | 1200w | 100MM | 220V+-10% |
Features:
1. The high precision ultrasonic welding machine has a reinforced steel frame, full series standard depth detection;
2. Real-time automatic tracking and locking frequency;
3. Welding rise and fall, Mould adjustment rise and fall adopt linear guide rail slider;
4. With rich interface, this ultrasonic welder is easy to automatic control;
5. Six welding modes:time,energy,grounding,absolute depth,relative depth,pressure trigger;
6. Quality management: time mode, energy mode, absolute depth and relative depth can test each other;
7. Powerful function, excellent quality, high welding stability.
Application:
The ultrasonic welding machine can be used for automotive, electronics, home appliances, industrial components, electrical wiring components, lighters, toys, gadgets, medical, personal appliances, and more.
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf

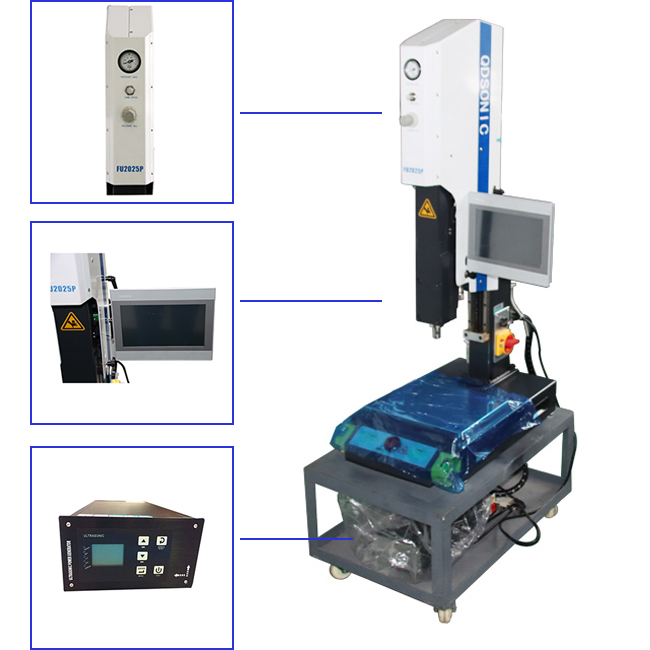

Detailed Photos:
Warehouse:
Packing:
