20KHz Plastic Ultrasonic Welding Set With Generator Transducer And Horn

  • 1
  • 2
  • 3

Brand Name : KnMTech

Model Number : KM-ME-S2018

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T, Paypal

Supply Ability : 500 sets per month

Delivery Time : 15 work days

Packaging Details : paper/wood carton

Product Name : 20KHz Intermittent Ultrasonic Welding Set For Plastic Welding

Power Supply : AC220V 50Hz

Output Power : 1800W

Working Frequency : 20KHz

Welding Time : Adjustable

Welding Amplitude : Adjustable 10%-100% (1% Accuracy)

Usage : Plastic Ultrasonic Welding

After-sales service provided : Video technical support

Contact Now

20KHz intermittent ultrasonic welding set for plastic welding

The K&M Tech standard machine gives ultrasonic welding a new dimension: it combines high-performance ultrasonic components with high-quality construction and up-to-date control solutions. Compared with its predecessors the functionality of the K&M Tech has been improved and handling simplified.

This 20KHz intermittent ultrasonic welding set for plastic welding has a good rating, which is widely used in label cutting, food cutting, small plastic parts spot melting, plastic riveting, non-woven cloth welding, slicing, etc

Technical parameters:
20KHz Plastic Ultrasonic Welding Set With Generator Transducer And Horn

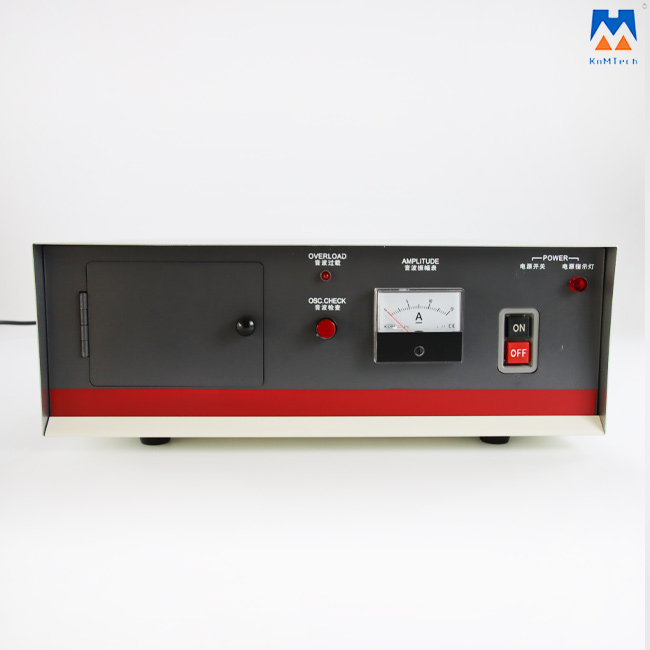

Generator

Dimension Length 530mm×Width 460mm×Height 170mm
Net weight Of Main Body 14 Kg
Frequency Range 19.40-20.20kHz
Output Power 1800W
Voltage 220V+-10%
Welding Mode Intermittent Welding
Welding Time 0.00s-9.99s
Protection Welding electrode impedance analysis +protection
Voltage protection
Transducer voltage protection
Working Frequency (options) 20KHz
Welding Amplitude adjustable 10%-100% (1% accuracy)
Air source purified air with particle diameter of less than 5μm, 7kgf/cm2


Transducer

Resonant Frequency 20KHz
Impedance R:3~10Ω,Refers to the resistance measured by a similar instrument such as a resistance characteristic analyzer
Capacitance 11-~12nf
Maximum Power P:1800W, Machine manufacturers may have different regulations for the nominal power of machines for different purposes.
In other words, the same transducer may have different nominal power for different machines.
Therefore, when choosing an ultrasonic transducer, you can only refer to its maximum power
Working Mode Intermittent working
Humidity Of Working Environment relative humidity ≤85% (non-condensing)
Material aluminum alloy for the convertor, stainless steel for the booster
Joint bolt M12
Ceramic disc Diameter 60mm
Quantity of Ceramic discs 4 pcs
Net weight of main body 5.3KG


Horn

Dimension Length 110mm × Width 20mm
Frequency 20KHz
Net weight of main body 3KG
Material steel


Flange

Frequency 20KHz
Inner Diameter 65mm
External Diameter 115mm
Thickness 40mm
Material Steel
Net weight of main body 1.4KG


Features:

1. High quality imported ultrasonic transducer with strong power and good stability.
2. The design of the whole machine is exquisite, and the small size does not occupy space.
3. The product has high power and strong output.
4. Assembly of high quality imported parts of main parts.
5. The noise is slight and the working environment is environmentally friendly.

Application:

Automotive Automotive bumper repair welding, cotton insulation doors, seat wipers, engine cover, radiator cap spot, etc
Electronics Switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc
Home appliances Balance ring, electronic clock, computer, etc
Toy plastic toys, plastic gifts, etc
Packaging Corrugated tray, zip lock welded, etc
Medical Testing Equipment,filters, insulated trays..etc.

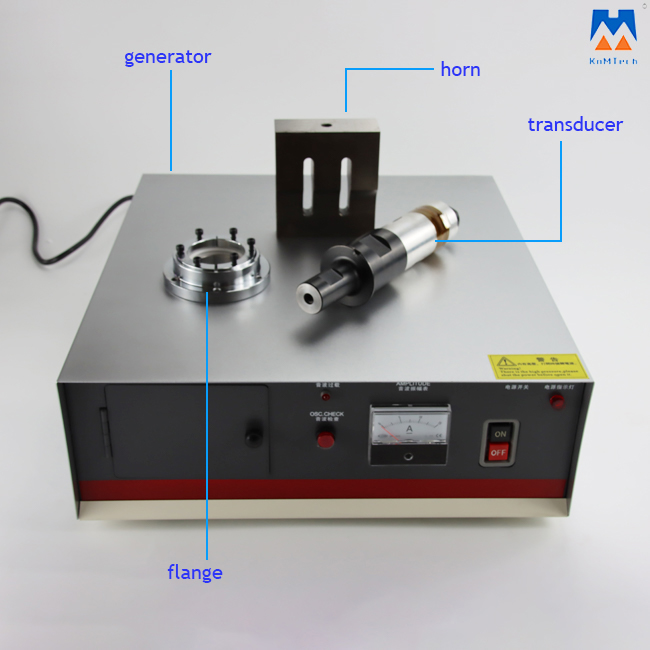

Detailed Photos:

20KHz Plastic Ultrasonic Welding Set With Generator Transducer And Horn
20KHz Plastic Ultrasonic Welding Set With Generator Transducer And Horn
