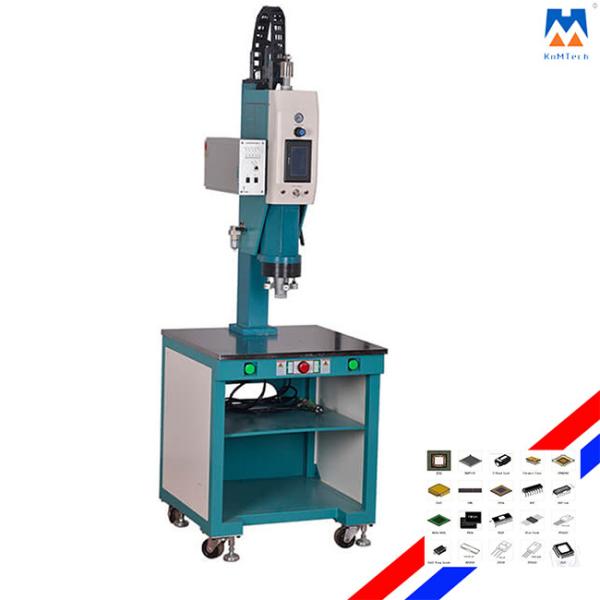

3000W Branson Replacement Welder Plastic Welding Machine Ultrasonic Welder
Technical parameters:
| Product Name | 3KW Ultrasonic Plastic Welding Machine |
| Frequency | 15KHz |
| Power | 3000W |
| Working Stroke | 75MM |
| Voltage | 220V+-10% |
| Air Source | 2kgf-8kgf |
When an ultrasonic wave acts on a thermoplastic plastic contact surface, it will produce tens of thousands of high-frequency vibrations per second. This high-frequency vibration which reaches a certain amplitude transmits ultrasonic energy to the welding area through the upper welding parts. Due to the large acoustic resistance at the interface of the two welds, local high temperatures will be generated. Again due to poor thermal conductivity of plastic, heat can't timely send out for a while, gathered in the welding area, the two plastic contact rapidly melt, coupled with a certain pressure, make its merging into one When ultrasonic stop function, to keep the pressure for a few seconds, make its solidification molding, forming a strong chain, achieve the purpose of welding, the welding strength can close to the raw material strength.
The good or bad of ultrasonic welding depends on the amplitude of the ultrasonic welding head, pressure, and welding time. while the welding time and head pressure can be adjusted, the amplitude is determined by the welding transducer and booster, These three quantities interact with each other to have a suitable value. When the energy exceeds the suitable value, the melting amount of plastic is large, and the welding material is easy to deform. If the energy is small, it is not easy to weld firmly, and the added pressure should not be too large. This optimum pressure is the length of the side of the welded part multiplied by the optimum pressure per 1mm of the edge.
Features:
* Real time frequency automatic tracking display
* Welding modes : time,energy,and grounding
* Amplitude division function
* Welding amplitude 10% - 100% adjustable (1% accuracy)
* Amplitude compensation
* Mold impedance analysis + protection
* Overload protection
* Voltage portection
* Transducer voltage protection
* Quality management(time and energy)
* Welding record (operation statistics)
* Powerful,high quality,stable welding
Welding Materials:
HDPE, PP, PE, ABS, PVC, NYLON, NON-WOVEN, etc.
Application:
For all application markets, ultrasonic welding machine has its unique advantages - fast, efficient, clean, and firm, won the recognition of all walks of life.
* Automobile:
ultrasonic waves can be controlled by computer programs to implement the welding of large and irregular parts. such as bumpers, front and rear doors, lamps, brakes
Lamp, etc. With the development of high-grade roads, reflectors are also increasingly using ultrasound wave soldering.
* Packaging:
nhose sealing, special packaging belt connection.
* Electronics:
use automation scheme design to enable users to achieve large-scale production.
At the same time ensure product quality requirements.
* Home appliances:
through appropriate adjustment can be used for portable lampshade, steam Ironing door, TV shell, radio, transparent panel, power rectifier,
the screw fixing seat of TV shell, the lamp housing for reducing mosquitoes and the sink for washing machine etc.. which need to be sealed and firm and beautiful home appliances.
* Toy industry:
the adoption of ultrasonic technology makes the products clean and efficient, firm, instead of screws, adhesives, glues or other accessories, reducing the risk & production cost, so that the competitiveness of enterprises in the market greatly enhanced.
* Other commercial applications:
communication equipment, computer industry, printing equipment, Audio products, can be used K&M Technologies ultrasonic equipment, he brought you fast, clean, efficient production methods, as well bring you more opportunities.
FAQ:
1. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
2. Can we agent your ultrasonic welding machines in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.
3. How about payment?
100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment.
4. Do you provide samples? is it free or extra?
Yes, we could offer the sample and it's not free.
5. could you make it according to our special requirements?
Of course, we can do that. Please tell us your idea or your application.
Detailed Photos:
Warehouse:
Packing:
